Art. FDA-000012E – 1/2″ Medium Nipple Drinker for Finishing Pigs

SKU: FDA-000012E Categories: , , , Tag:

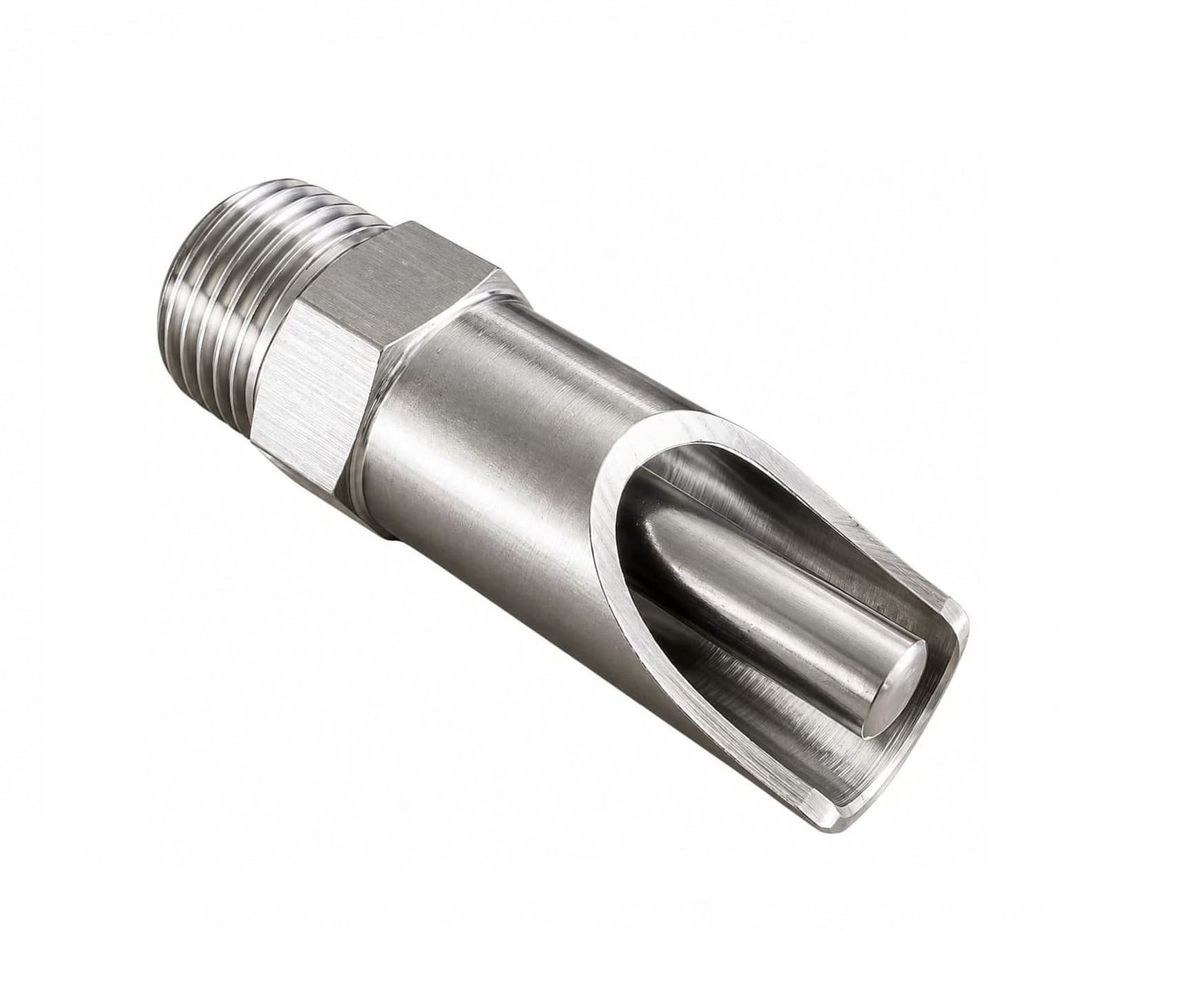

FDA-000012E automatic nipple drinker in stainless steel, with 1/2″ connection. Reliable, durable, and ideal for ensuring controlled water delivery for finishing pigs.

👉 (CLICK HERE) for complete installation table

👉 (CLICK HERE) for flow rate table

👉 (CLICK HERE) for technical drawing

1/2" Automatic Nipple Drinker for Finishing Pigs – Art. FDA-000012E

Product description

The FDA-000012E automatic drinker for finishing pigs is designed to ensure reliability, durability, and consistent water delivery throughout the entire growing phase.
Made entirely of stainless steel and designed for quick installation, it represents an ideal solution for swine farms requiring efficiency, hygiene, and durability in structures dedicated to growing pigs.

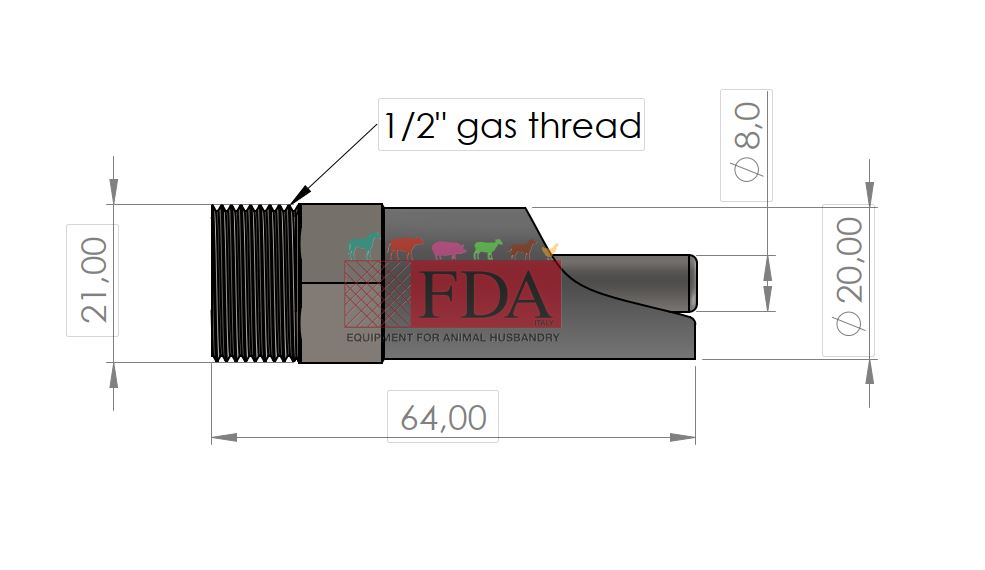

Technical specifications

  • Material: stainless steel
  • 1/2" Threaded Connection
  • Total Length: 64 mm
  • Drinker pipe Ø 20 mm
  • Pin Ø 8 mm
  • Weight: 84.7 g
  • Hexagon 21 mm

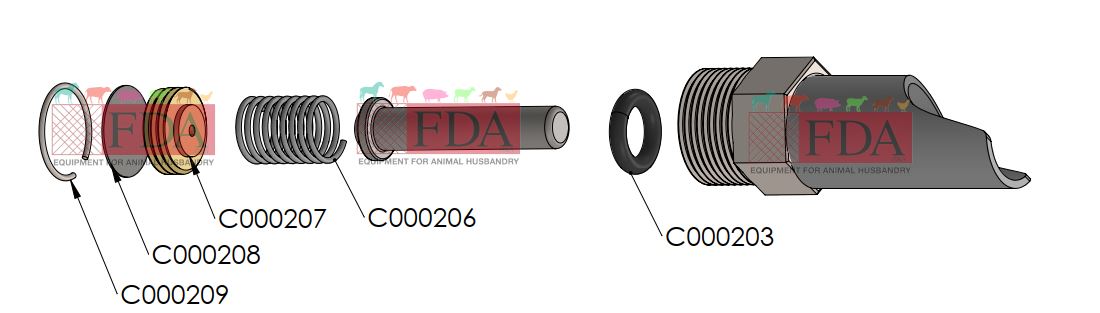

  • Internal stainless steel mesh filter with retaining ring or adjustable plastic filter (see model FDA-0000012ETP)
  • Brass valve (2 mm hole std. Different hole diameters available upon request)

Installation heights and angle

👉 (CLICK HERE) for the complete installation table

The indicated heights are general guidelines.
For rearing store pigs, we recommend using two installation heights or height adjusters to adapt the drinker position to the animals' growth.

The FDA-000012E drinker can be installed at an angle between 15° and 45°:

  • 15° → use the lower height
  • 45° → use the higher height

This adjustment ensures correct animal posture and reduces water waste.

Recommended water pressure

The maximum water pressure must not exceed 4 bar (55 psi) to ensure correct system operation.

For piglets and weaned piglets, the pressure should not exceed 2 bar (28 psi).

Lower pressures promote:

  • water savings
  • longer life for seals and spring
  • flow regularity
  • ease of use
  • waste reduction

👉 The use of a pressure reducer is recommended if the water line has high or unstable values.

Water flow rate

👉 (CLICK HERE) for the flow rate table

The actual flow rate varies based on the pressure available along the barn.
For grower pigs, a flow rate between 0.8 and 1.4 L/min is recommended to ensure adequate water intake throughout the growth phase.

Optional valves with the following diameters are available to increase flow rate:

  • Ø 3 mm
  • Ø 3.5 mm
  • Ø 4 mm

The use of pressure reducers allows for centralized system management, particularly useful in summer months when it may be necessary to increase the flow rate.
